Solar Data November 2009

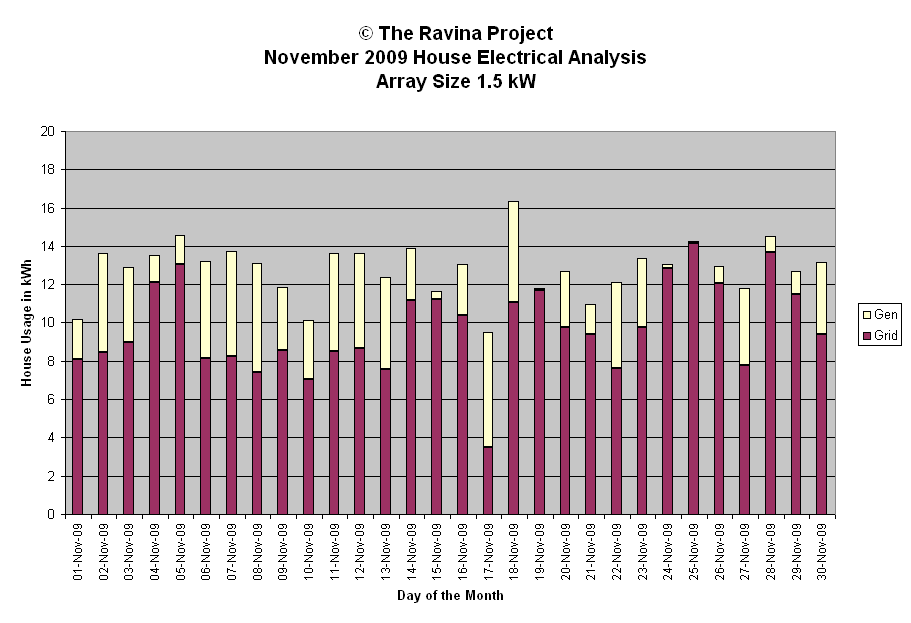

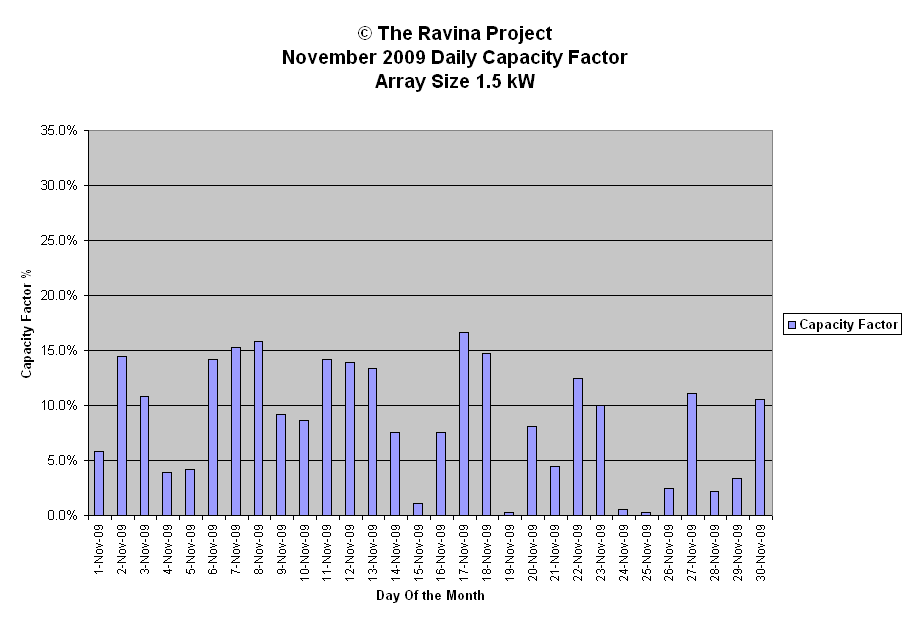

This page contains both generation data and a graph for the month.
| November 2009 Energy Generation Analysis | © Copyright The Ravina Project | |||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | Factor | |||||||
| 1-Nov-09 | 2.1 | pt cld | 1287 | 614 | 2.3 | 5.8% | Generation Analysis kWh | |||
| 2-Nov-09 | 5.2 | sun pt cld | 1258 | 612 | 5.7 | 14.4% | ||||
| 3-Nov-09 | 3.9 | oc rain am sun cld pm | 1265 | 609 | 4.3 | 10.8% | Total | 92.5 | ||
| 4-Nov-09 | 1.4 | sun hz | 410 | 606 | 1.5 | 3.9% | Average | 3.1 | ||
| 5-Nov-09 | 1.5 | sun hz | 1303 | 604 | 1.7 | 4.2% | Median | 3.2 | ||
| 6-Nov-09 | 5.1 | sun | 1493 | 602 | 5.6 | 14.2% | Stdev | 1.9 | ||
| 7-Nov-09 | 5.5 | oc am sun pm | 1092 | 598 | 6.1 | 15.3% | ||||
| 8-Nov-09 | 5.7 | sun cld am oc rain pm | 1035 | 596 | 6.4 | 15.8% | WX short forms used | |||
| 9-Nov-09 | 3.3 | oc sun brks | 1095 | 594 | 3.7 | 9.2% | ||||
| 10-Nov-09 | 3.1 | oc cold | 1070 | 591 | 3.5 | 8.6% | oc - overcast | |||
| 11-Nov-09 | 5.1 | oc | 1531 | 589 | 5.8 | 14.2% | diff - diffuse light | |||
| 12-Nov-09 | 5.0 | oc am sun brks pm | 1427 | 587 | 5.7 | 13.9% | brks - breaks | |||
| 13-Nov-09 | 4.8 | oc rain | 1156 | 584 | 5.5 | 13.3% | br - bright | |||
| 14-Nov-09 | 2.7 | sun am oc rain pm | 1176 | 582 | 3.1 | 7.5% | cld - cloud | |||
| 15-Nov-09 | 0.4 | oc rain | 242 | 580 | 0.5 | 1.1% | hi - high altitude | |||
| 16-Nov-09 | 2.7 | sun am oc pm | 1169 | 578 | 3.1 | 7.5% | hz - haze pollution or cirrus | |||
| 17-Nov-09 | 6.0 | sun pt cld | 1375 | 575 | 7.0 | 16.7% | pds - periods | |||
| 18-Nov-09 | 5.3 | sun pt cld | 1224 | 573 | 6.2 | 14.7% | pt - part | |||
| 19-Nov-09 | 0.1 | sun am pt cld pm | 137 | 571 | 0.1 | 0.3% | wx - weather | |||
| 20-Nov-09 | 2.9 | pt cld am sun pm | 1145 | 569 | 3.4 | 8.1% | sml - small | |||
| 21-Nov-09 | 1.6 | sun | 1077 | 567 | 1.9 | 4.4% | mod - moderate | |||
| 22-Nov-09 | 4.5 | sun hz | 1101 | 565 | 5.3 | 12.5% | ||||
| 23-Nov-09 | 3.6 | sun hz | 1183 | 563 | 4.3 | 10.0% | Peak Watt Analysis W | |||
| 24-Nov-09 | 0.2 | oc rain | 87 | 561 | 0.2 | 0.6% | ||||
| 25-Nov-09 | 0.1 | oc sun clds pm | 115 | 559 | 0.1 | 0.3% | Maximum | 1531 | ||
| 26-Nov-09 | 0.9 | oc rain snow | 827 | 558 | 1.1 | 2.5% | Minimum | 87 | ||
| 27-Nov-09 | 4.0 | oc sun brks | 1132 | 556 | 4.8 | 11.1% | Average | 1018 | ||
| 28-Nov-09 | 0.8 | oc | 1057 | 555 | 1.0 | 2.2% | Median | 1139 | ||
| 29-Nov-09 | 1.2 | oc | 739 | 553 | 1.4 | 3.3% | Std deviation | 411 | ||
| 30-Nov-09 | 3.8 | oc rain pm | 1326 | 551 | 4.6 | 10.6% | ||||
| Efficiency Analysis Wh/min/kW | ||||||||||
| Monthly: | 92.5 | 17402 | Capacity Factor Analysis | |||||||
| YTD: | 1629.7 | 250976 | Maximum | 7.0 | ||||||
| Maximum | 16.7% | Minimum | 0.1 | |||||||
| Minimum | 0.3% | Average | 3.5 | |||||||
| Average | 8.6% | Median | 3.6 | |||||||
| Median | 8.9% | Std Deviation | 2.2 | |||||||
| Std Deviation | 5.3% | |||||||||
