2010 Solar Data
Solar Data Home



Solar Data November 2010

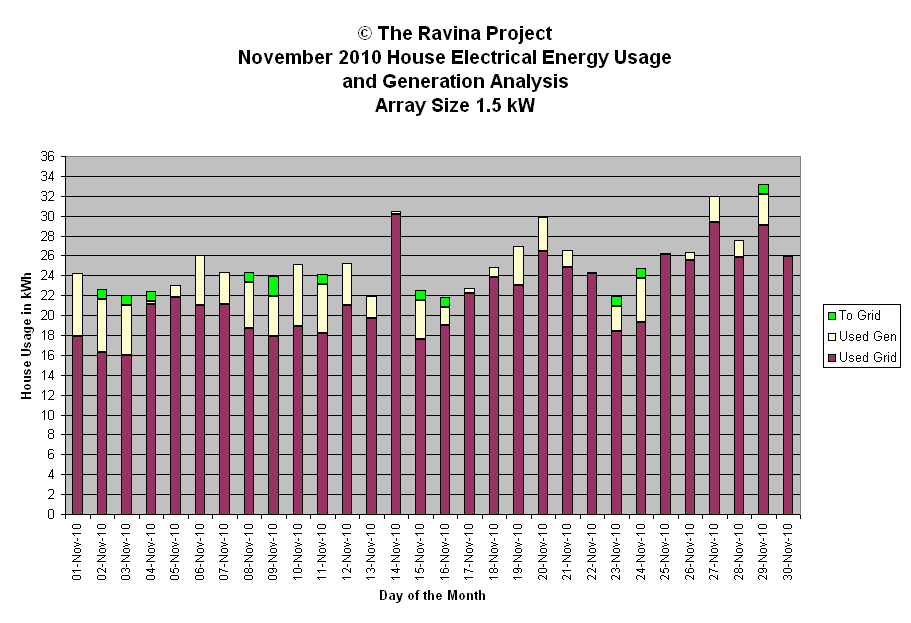

This page contains both generation data and a graph for the month.

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.


November 2010 Power Generation Analysis © The Ravina Project
Day  kWh Weather Peak  Minutes Efficiency   Array Size 1.5  kW
  Gen   Watts   Wh/min/kW
1-Nov-10 6.3 pristine sun cold 1247 615 6.8   Generation Analysis kWh
2-Nov-10 6.3 pristine sun cold 1134 612 6.9
3-Nov-10 6.0 thn cld am sun pm 1128 610 6.6   Total 96.6
4-Nov-10 1.3 diffuse cold oc 960 607 1.4   Average 3.2
5-Nov-10 1.2 oc cold 528 604 1.3   Median 3.3
6-Nov-10 5.0 sun am pt sun pm 1320 602 5.5   Stdev 2.2
7-Nov-10 3.2 thn cld 1446 600 3.6
8-Nov-10 5.6 thn cld 1156 596 6.3   WX short forms used
9-Nov-10 6.0 pristine sun 1126 594 6.7
10-Nov-10 6.2 pristine sun 1180 592 7.0   oc - overcast
11-Nov-10 5.9 thn cld 1150 589 6.7   diff - diffuse light
12-Nov-10 4.2 oc early am, sun 1268 587 4.8   brks - breaks
13-Nov-10 2.2 oc fog am, sun thn cld pm 1169 585 2.5   br - bright
14-Nov-10 0.3 oc rain sun brks 1337 582 0.3   cld - cloud
15-Nov-10 5.0 sun cld pds 1063 580 5.7   hi - high altitude
16-Nov-10 2.8 thn cld am, diff oc pm 977 578 3.2   hz - haze pollution or cirrus
17-Nov-10 0.5 oc rain sun brks 60 576 0.6   pds - periods
18-Nov-10 1.0 cld sun brks 1054 573 1.2   pt - part
19-Nov-10 3.9 sun am, diff pm 1293 572 4.5   wx - weather
20-Nov-10 3.4 sun diff 1281 570 4.0   sml - small
21-Nov-10 1.7 oc sun brks 1194 567 2.0   mod - moderate
22-Nov-10 0.1 oc dull 126 565 0.1
23-Nov-10 3.6 pt cld am, oc pm 1307 564 4.3   Peak Watt Analysis W
24-Nov-10 5.5 sun thn cld pm 1171 562 6.5
25-Nov-10 0.1 dull oc 65 560 0.1   Maximum 1446
26-Nov-10 0.8 oc pt sun 1141 558 1.0   Minimum 60
27-Nov-10 2.6 oc early, pt cld pm 1405 556 3.1   Average 1026
28-Nov-10 1.7 early oc, sun pm 1171 555 2.0   Median 1163
29-Nov-10 4.1 thn cld  1233 553 4.9   Std deviation 408
30-Nov-10 0.1 oc rain 104 552 0.1
            Efficiency Analysis Wh/min/kW
Monthly:       17416
            Maximum 7.0
            Minimum 0.1
            Average 3.7
            Median 3.8
            Std Deviation 2.5
